Upper Spring Seat Installation Note

  1. Align the mark on the upper spring seat with the dust boot projection.

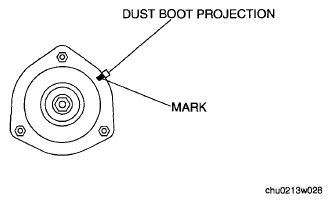

    Fig 1: Mark On Upper Spring Seat
    G05981172Courtesy of MAZDA MOTORS CORP.
  2. Install the upper spring seat so that the upper spring seat stud is at a 27°-33°  angle to the shock absorber installation shaft (lower side).

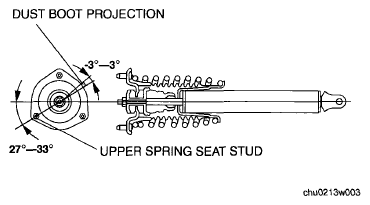

    Fig 2: Upper Spring Seat Stud And Dust Boot Projection
    G05981173Courtesy of MAZDA MOTORS CORP.
