Piston Rod Nut Removal Note

WARNING:

Before removing the piston rod nut, secure the shock absorber and spring in the SSTs. Otherwise, the shock absorber and spring could fly off under tremendous pressure and cause serious injury or death, or damage to vehicle parts.

Install the front shock absorber and coil spring to the SSTs according to the following procedures.
NOTE:
- Install the SST using a piece of clean rag to prevent the coil spring from being scratched.
1. Set the SST attachments (tabs) to the positions shown in the illustration.

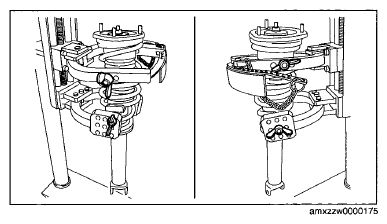

  Fig 1: Installing Front Shock Absorber And Coil Spring To SST
  Courtesy of MAZDA MOTORS CORP.
2. Install the front shock absorber and coil spring to the SST so that the coil spring is set to the position shown in the illustration.

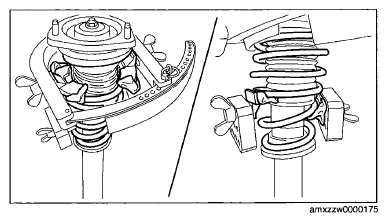

  Fig 2: Compressing Coil Spring With SST
  Courtesy of MAZDA MOTORS CORP.
Compress the coil spring using the SSTs.
Remove the piston rod nut.

Fig 3: Removing Piston Rod Nut
Courtesy of MAZDA MOTORS CORP.
