Front Lower Arm Removal/Installation: Notes

CAUTION:
  • Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled while servicing the vehicle.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

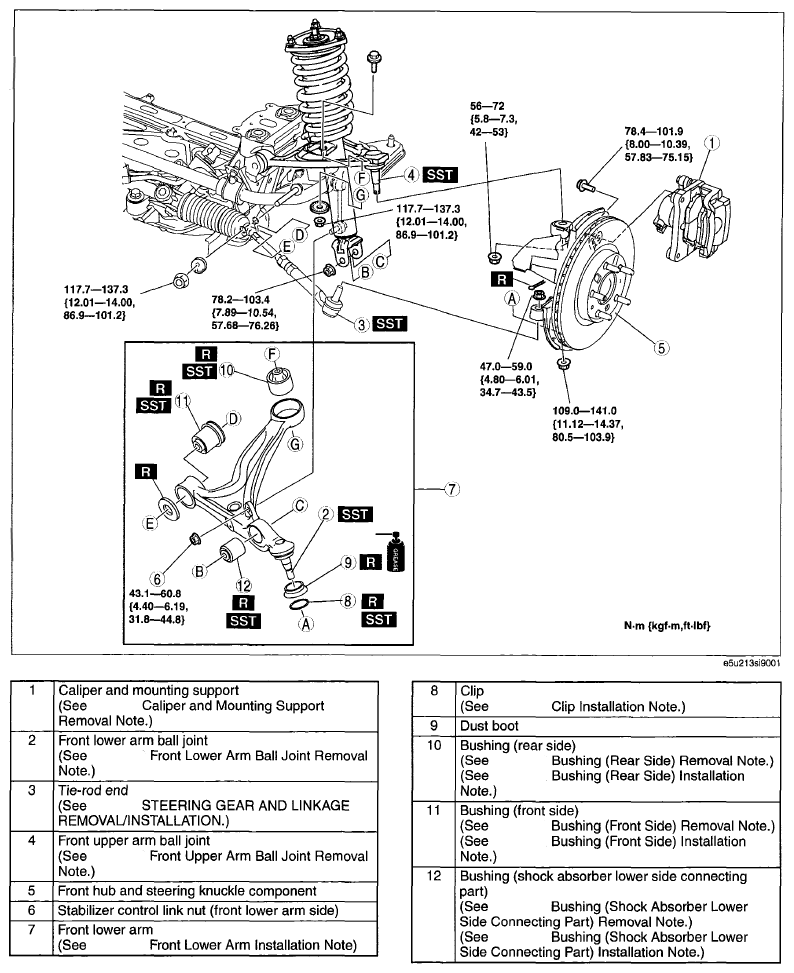

Fig 1: Exploded View Of Front Lower Arm With Torque Specifications
G06151193Courtesy of MAZDA MOTORS CORP.
