Bushing (Front Side) Installation Note

  1. Press the bushing in using the SSTs.

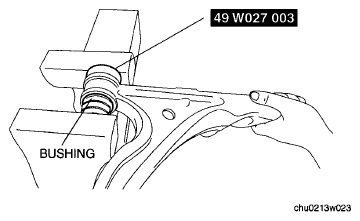

    Fig 1: Pressing Bushing
    G05981189Courtesy of MAZDA MOTORS CORP.
  2. Insert the stopper plate rubber into the inner pipe of the bushing (front side).

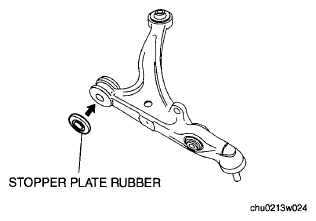

    Fig 2: Inserting Stopper Plate Rubber
    G05981190Courtesy of MAZDA MOTORS CORP.
