Front Crossmember Component Removal Note
- Secure the chain to install the SST
to the position shown in the illustration using the bolts (M10 x 1.5
, length 30 mm {1.18 in}).
Courtesy of MAZDA MOTORS CORP.

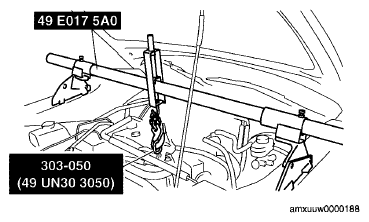

- Suspend the engine.
Courtesy of MAZDA MOTORS CORP.

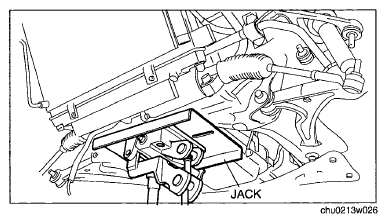

- Support the front crossmember using a jack.
WARNING:
- Verify that the crossmember component is securely supported by a jack. If the crossmember component falls, it could cause serious injury or death, or damage to the vehicle.
Courtesy of MAZDA MOTORS CORP.
- Lower the front crossmember component slightly.
- Remove the engine mounting rubber, pipes and hoses installed to the front crossmember.
- Remove the front crossmember component.
