Steering Wheel And Column Removal/Installation: Notes

WARNING:
  1. Remove in the order indicated in the illustration.
  2. Install in the reverse order of removal.
  3. If the steering lock component is replaced on vehicles with the advanced keyless entry and start system, perform programming for the immobilizer system related parts. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND START SYSTEM] )

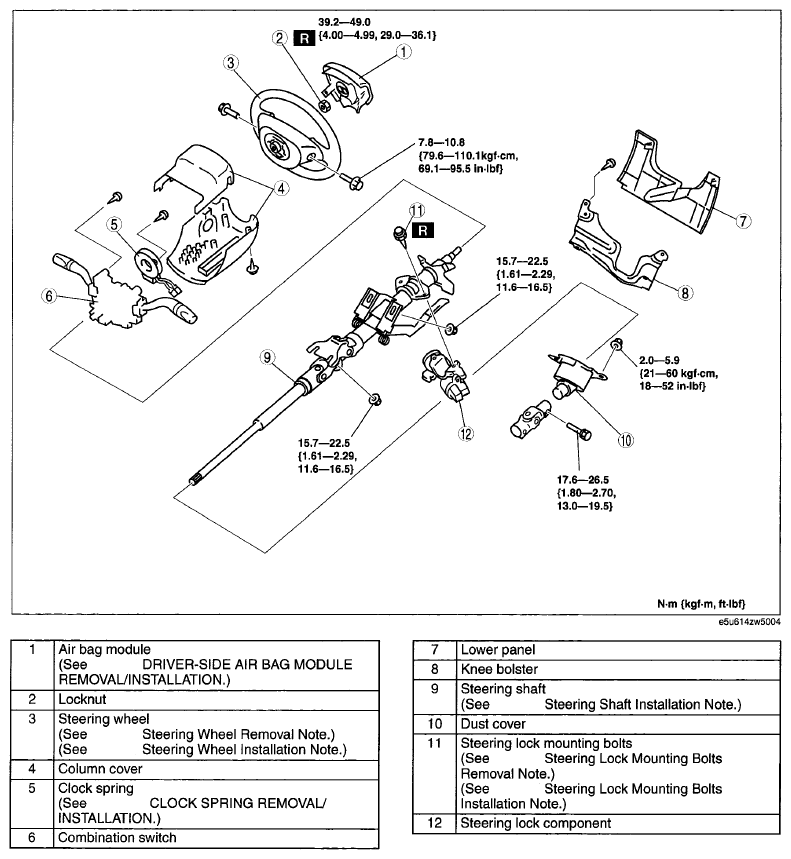

    Fig 1: Steering Wheel And Column Components With Torque Specifications
    G06150539Courtesy of MAZDA MOTORS CORP.
