Power Steering Oil Pump Disassembly/Assembly: Notes

NOTE:
  • The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.
  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

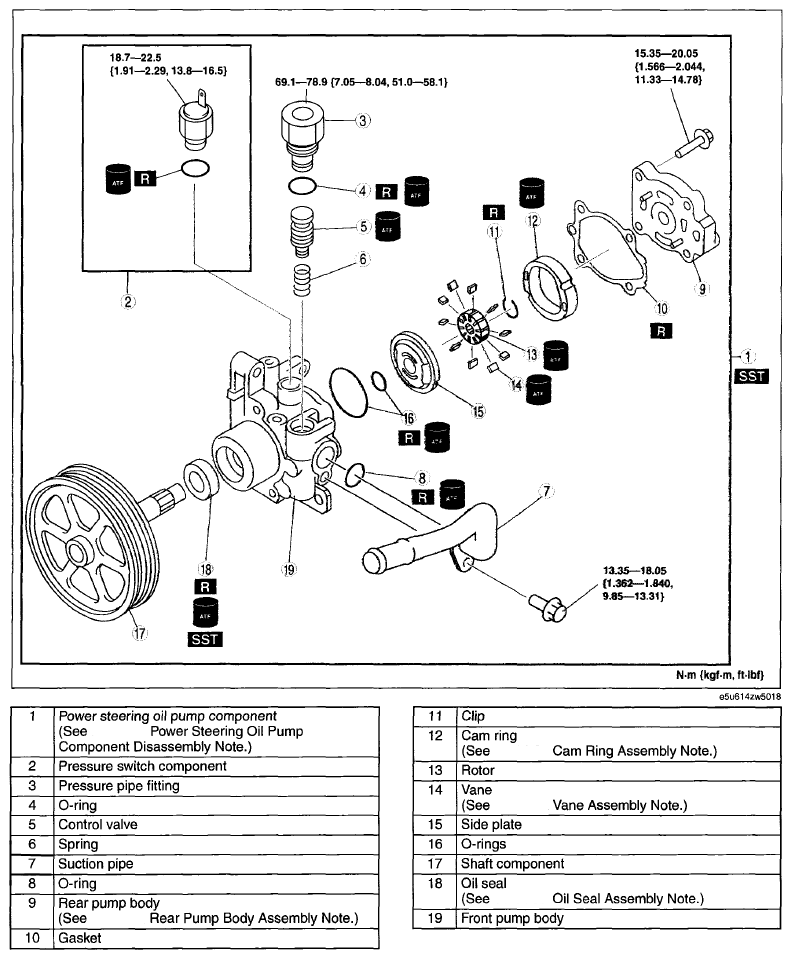

    Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications
    G06150577Courtesy of MAZDA MOTORS CORP.
