SAS Control Module Removal/Installation
WARNING:
- Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-tensioner seat belt, which may seriously injure you. Read the air bag system service warnings and cautions before handling the SAS control module. (See AIR BAG SYSTEM SERVICE WARNINGS ) (See AIR BAG SYSTEM SERVICE CAUTIONS )
CAUTION:
- Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-tensioner seat belt, which may seriously injure you. If configuration is not completed before removing the SAS control module, DTC B2477 will be displayed.
- Perform SAS control module configuration when replacing it. (See SAS CONTROL MODULE CONFIGURATIONS )
- Turn the ignition switch to the LOCK position.
- Remove the battery cover.
- Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [LF] )
- Remove the following parts:
- Console (See CONSOLE REMOVAL/INSTALLATION )
- Side wall (See SIDE WALL REMOVAL/INSTALLATION )
- Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION )
- Keyless antenna (center) (with advanced keyless entry and start system) (See KEYLESS ANTENNA REMOVAL/INSTALLATION )

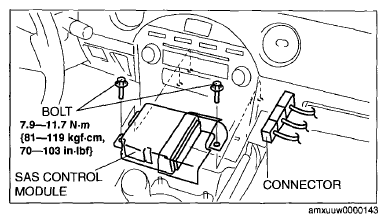

- Disconnect the connector
- Remove the bolts.
- Remove the SAS control module.
- Install in the reverse order of removal.
- Turn the ignition switch to the ON position.
- If the SAS control module is replaced, turn the ignition switch to the ON position for 20 s or more after completing the configuration. (See SAS CONTROL MODULE CONFIGURATION )
- Verify that the air bag system warning light illuminates for approx. 6 s
and goes out.
- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART )
