Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF] ).
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] ).
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
  4. Remove the front suspension tower bar (joint). (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table in figure.
  6. Install in the reverse order of removal.

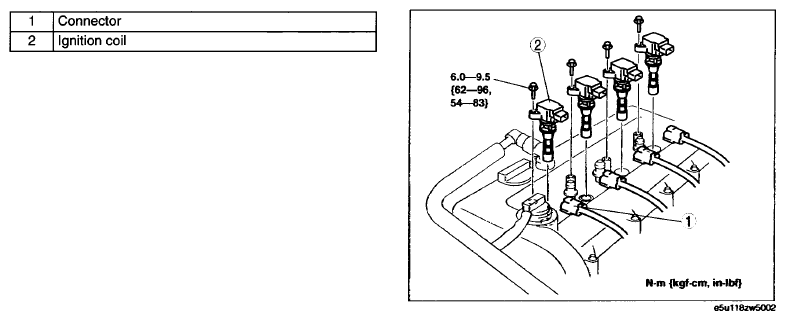

    Fig 1: Ignition Coil And Connector With Torque Specifications
    G07877742Courtesy of MAZDA MOTORS CORP.
