Starter Installation Note

NOTE:

If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

Peel off the insulator from the starter completely using a scraper.

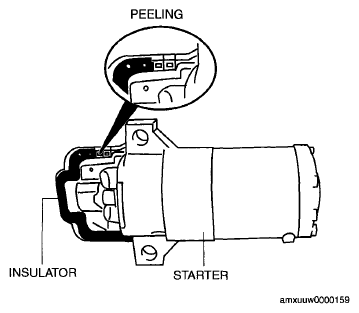

Fig 1: Peeling Off Insulator From Starter
Courtesy of MAZDA MOTORS CORP.
Degrease the insulator attachment area.

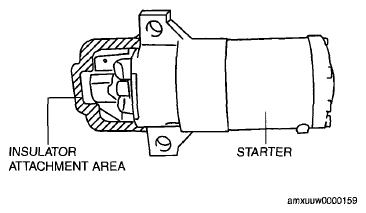

Fig 2: Insulator Attachment Area
Courtesy of MAZDA MOTORS CORP.
Attach a new insulator to the starter.

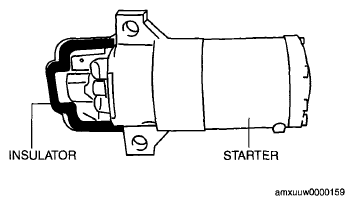

Fig 3: Attaching Insulator To Starter
Courtesy of MAZDA MOTORS CORP.
