Exhaust System Removal/Installation: Notes

WARNING:
  • A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before servicing the exhaust system.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove in the order indicated in Fig 1.
  4. Remove the exhaust system insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION NOTE .)
  5. Install in the reverse order of removal.

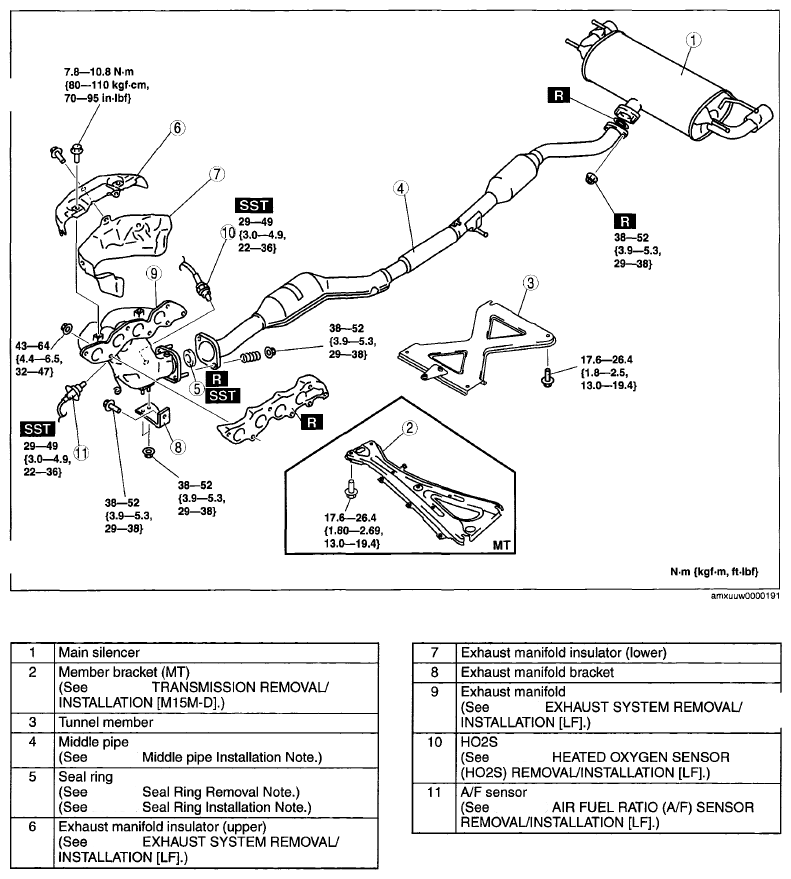

    Fig 1: Exhaust System Components With Torque Specifications
    G06150919Courtesy of MAZDA MOTORS CORP.
