Starter Disassembly/Assembly

  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

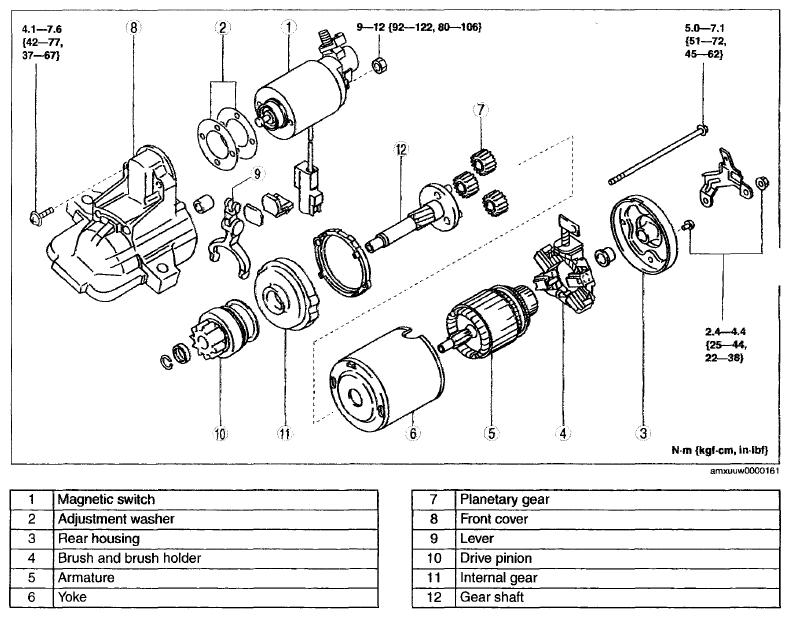

    Fig 1: Disassembling View Of Starter With Torque Specifications
    G06151030Courtesy of MAZDA MOTORS CORP.
