Check Code Table

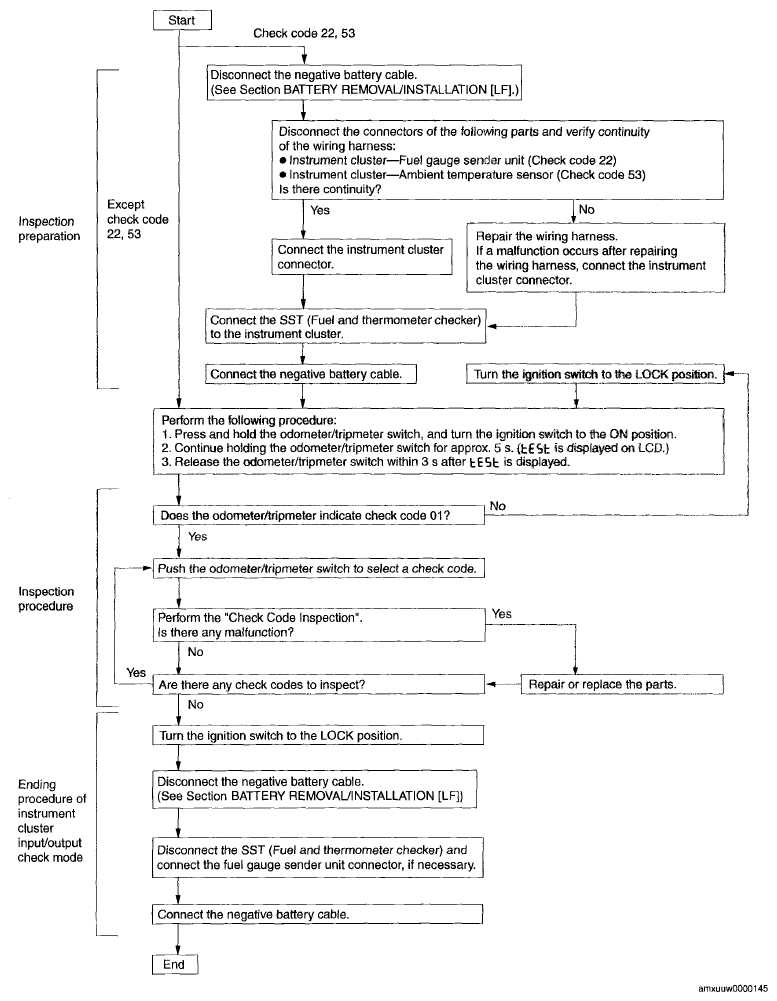

INSTRUMENT CLUSTER INPUT/OUTPUT CHART
| Check code | Check item | Related items |
|---|---|---|
| 01 | SAS control module | Seat belt warning alarm |
| 04 | Door switch |
|
| 08 | TNS relay |
|
| 12 | Speedometer | Speedometer |
| 13 | Tachometer | Tachometer |
| 14 | Buzzer | Buzzer |
| 16 | Fuel-level warning light | Fuel-level warning light |
| 18 | Ignition key illumination | Ignition key illumination |
| 22 | Fuel gauge sender unit | Fuel gauge |
| 23 | Fuel gauge | Fuel gauge |
| 25 | Water temperature gauge | Water temperature gauge |
| 26 |
|
|
| 28 | Oil pressure gauge | Oil pressure gauge |
| 31 | Key reminder switch | Key reminder warning alarm |
| 53 | Ambient temperature sensor | Ambient temperature |
| 57 | Panel light control | Illumination light bulb |
NOTE:
- Check codes which are not listed may be indicated, but they cannot be inspected.
- The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning).
- If a speed signal is input to the instrument cluster (the wheels are rotated), the input/output check mode will be cancelled.
- The check codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 s or more.
