Instrument Cluster Disassembly/Assembly
CAUTION:
- Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.

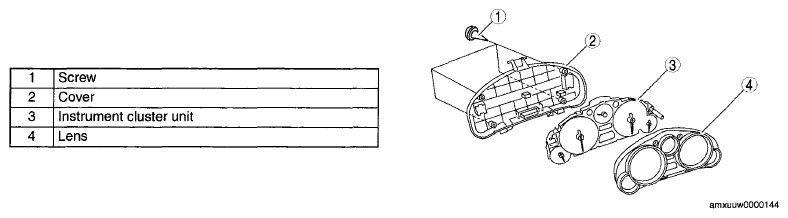

- Disassemble in the order indicated in the illustration.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
