Generator Disassembly/Assembly [LF]
CAUTION:
- Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

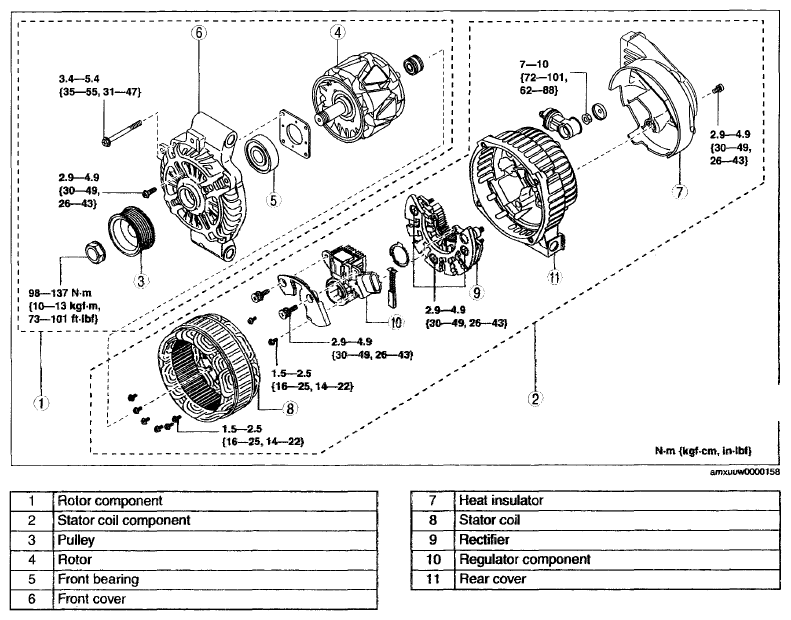

- Disassemble in the order indicated in the illustration.
- Assemble in the reverse order of disassembly.
