Front Wheel Hub Bolt Replacement

  1. Remove the brake caliper component and disc plate.
  2. Remove the wheel hub bolt using the SST  as shown in the illustration.
    Fig 1: Removing Wheel Hub Bolt
    G06151426Courtesy of MAZDA MOTORS CORP.
  3. Place a new wheel hub bolt in the wheel hub.
  4. Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown in the illustration.

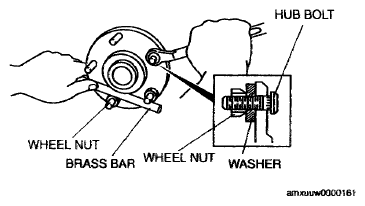

    Fig 2: Installing Wheel Hub Bolt
    G06151427Courtesy of MAZDA MOTORS CORP.
