Symptom Troubleshooting [Dynamic Stability Control (DSC)]

• Verify the symptoms, and perform troubleshooting according to the appropriate number.

SYMPTOM CHART

No.	Symptom
1	Any of the following lights do not illuminate when ignition switch turned to ON position: ABS warning light Brake system warning light DSC indicator light DSC OFF light
2	Any of the following lights remain on: ABS warning light Brake system warning light DSC indicator light DSC OFF light
3	There is a malfunction in the system even though ABS warning light, brake system warning light, DSC indicator light and DSC OFF light do not illuminate
4	ABS or TCS(1) operates frequently
	TCS does not work correctly
5	DSC(2) operates frequently
	DSC does not work correctly
(1) DSC system function contains traction control function, DSC indicator light goes on and off while DSC is operating (2) DSC indicator light goes on and off while DSC is operating

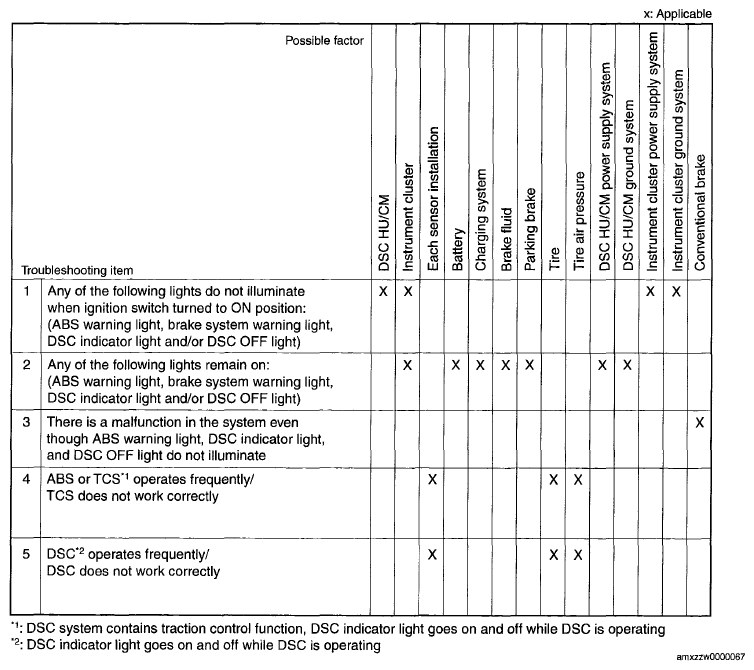

Fig 1: Dynamic Stability Control Symptom Troubleshooting Chart

Courtesy of MAZDA MOTORS CORP.
