DTC B1484 [Abs]: Notes

DTC B1484 REFERENCE

DTC B1484 Brake switch system
DETECTION CONDITION
  • Open circuit in the wiring harness between the ABS HU/CM terminal and the brake switch terminal
POSSIBLE CAUSE
  • Open circuit in the wiring harness between the ABS HU/CM terminal N and the brake switch terminal D
  • Brake switch malfunction

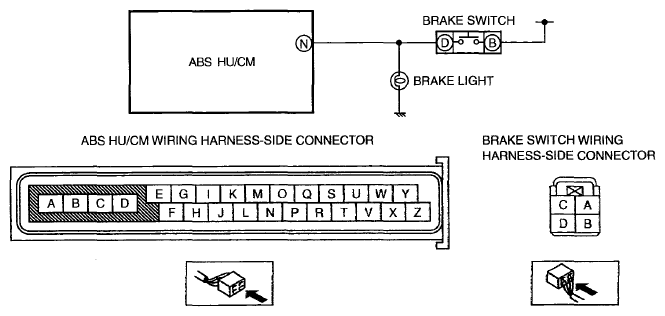

G06151227Courtesy of MAZDA MOTORS CORP.
