Main Fuse Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the upper block. (See UPPER BLOCK REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the illustration.

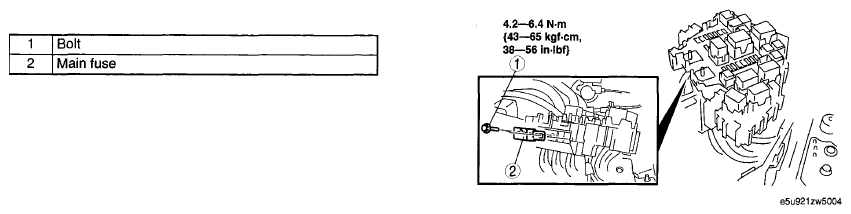

    Fig 1: Main Fuse And Bolt With Torque Specifications
    G06149166Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
