Front Side Trim Removal/Installation

  1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION )
  2. Remove the seaming welt.
  3. Remove the fastener.
  4. Pull the front side trim toward you, then disengage clip A and pin B from the body.
  5. Remove the front side trim.
  6. Install in the reverse order of removal.

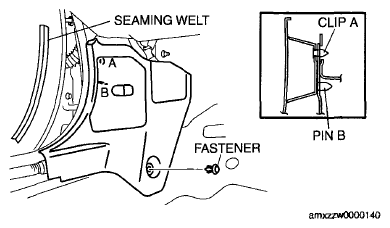

    Fig 1: Seaming Welt And Fastener
    G06149744Courtesy of MAZDA MOTORS CORP.
