Front Header Trim Removal/Installation: Installation

CAUTION:
  • Do not twist or drop the front header trim, otherwise the vanity mirror could be damaged.
  • If the front header trim is installed with the sunvisor pulled up, the vanity mirror could be damaged. Always install the front header trim with the sunvisor pulled down.
  1. Install the pin A and clip B.
  2. Pull down the sunvisor on the right, then install pin C and clips D.
  3. Pull down the sunvisor on the left, then install pin E and clips F.
  4. Install the screw.
  5. Install the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION )
  6. Install the map light. (See MAP LIGHT REMOVAL/INSTALLATION )
  7. Install the female wedge. (See CONVERTIBLE TOP DISASSEMBLY/ASSEMBLY )
  8. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  9. Install the battery cover.

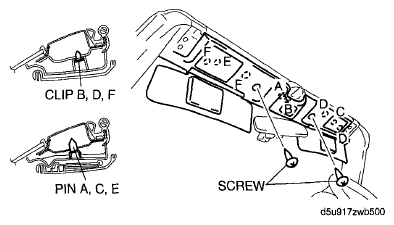

    Fig 1: Front Header Trim Screws, Clip And Pin
    G06149755Courtesy of MAZDA MOTORS CORP.
