Security And Locks Location Index
>>
Advanced Keyless Entry And Start System and Immobilizer System
Advanced Keyless Entry And Start System and Immobilizer System

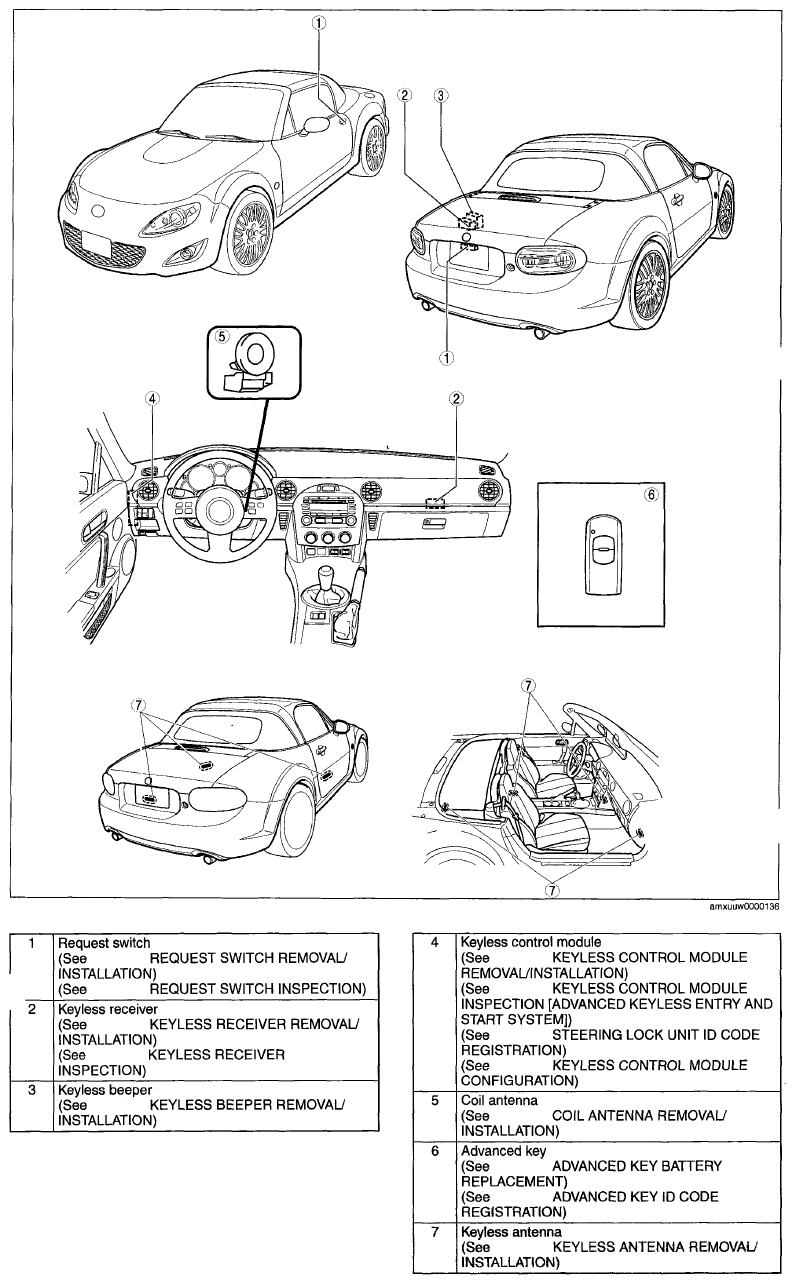

Fig 1: Advanced Keyless Entry, Start System And Immobilizer System Part Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
