Keyless Receiver Removal/Installation: Rear

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION )
  3. Remove the nuts.
  4. Disconnect the connector.
  5. Remove the keyless receiver (rear).
  6. Install in the reverse order of removal.

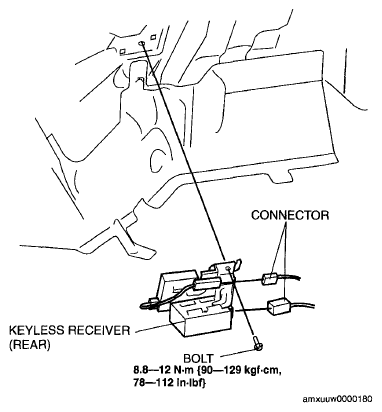

Fig 1: Keyless Receiver, Connector And Bolt With Torque Specifications
G06149531Courtesy of MAZDA MOTORS CORP.
