Keyless Beeper Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION )
  3. Remove the bolt.
  4. Disconnect the connector.
  5. Remove the keyless beeper.

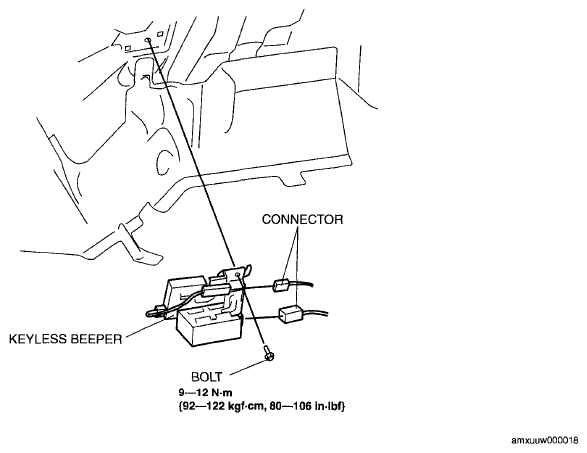

    Fig 1: Keyless Beeper And Connector With Torque Specifications
    G06149572Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
