No. 5 Programming Procedure Due to Steering Lock Unit Replacement: Procedure

Fig 1: Registration Key
G06149549Courtesy of MAZDA MOTORS CORP.
PCM PROGRAMMING PROCEDURE CHART

Step Procedure Action after procedure
1 REPLACE STEERING LOCK UNIT
Replace the steering lock unit.
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION )		 Go to the next step.
2 CLEAR IGNITION KEY ID NUMBERS
  1. Connect the M-MDS to the DLC-2. (See M-MDS CONNECTING PROCEDURE )
  2. Turn the ignition switch to the ON position using key 1.
    NOTE:
    • Although the security light starts flashing and DTC 15 is displayed after approx. 1 min  , this does not indicate an improper procedure. Continue to perform the procedure as indicated.
  3. After vehicle identification, select the following from the M-MDS initial screen.
    • Using an IDS (laptop PC):
      1. Select "Body"
      2. Select "Security"
      3. Select "PATS functions"
    • Using a PDS (pocket PC):
      1. Select "Programming"
      2. Select "PATS Functions"
  4. Then, select an item from the screen menu.
    • Ignition Key Code Erase and Program
  5. Perform the security access according to the directions on the M-MDS screen.
 Go to the next step.
3 PERFORM IGNITION KEY ID NUMBER PROGRAMMING
  1. Program two keys according to the directions on the M-MDS.
  2. Verify that the PATS function menu is displayed again on the M-MDS screen.
 Go to the next step.
4 PERFORM Steering Lock Unit Programming
  1. Select "Steering Lock Unit Programming" from the M-MDS screen menu.
  2. Complete the Steering Lock Unit Programming according to the directions on the M-MDS.

    (See STEERING LOCK UNIT ID CODE REGISTRATION )

  3. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)".
  4. Turn the ignition switch to the LOCK position.
  5. Disconnect the M-MDS from the DLC-2.
  6. Remove the programmed advanced key from the vehicle.
 Go to the next step.
5 VERIFY KEY 1 PROGRAMMING PERFORMED CORRECTLY
  1. Start the engine using key 1.

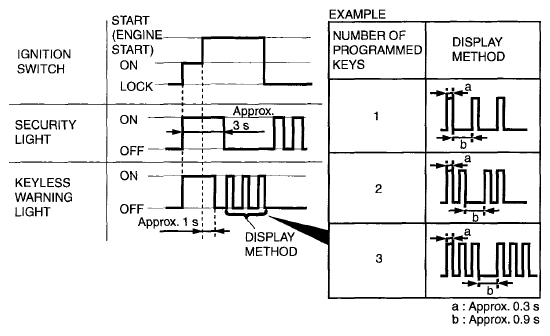

  2. Verify that the security light and keyless warning light operate as shown in the following illustration.
  3. Turn the ignition switch to the LOCK position and remove key 1.
G06149550Courtesy of MAZDA MOTORS CORP.
 Go to the next step.
6 VERIFY KEY 2 PROGRAMMING PERFORMED CORRECTLY
  1. Start the engine using key 2.
  2. Verify that the security light and keyless warning light operate as shown in the following illustration.
  3. Turn the ignition switch to the LOCK position and remove key 2.
  4. Are there other keys to be programmed?
G06149551Courtesy of MAZDA MOTORS CORP.
 Yes Repeat Step 6 using each programmed key.
No Go to the next step.
G06149552Courtesy of MAZDA MOTORS CORP.
 Go to the next step.
G06149553Courtesy of MAZDA MOTORS CORP.
 Yes Repeat Step 6 using each programmed key.
No Go to the next step.
7 VERIFY ADVANCED KEY PROGRAMMING PERFORMED CORRECTLY
  1. Bring the programmed advanced key into the vehicle.
  2. Close all doors.
  3. Remove the key from the key cylinder and place it on the front passenger's seat.
  4. Start the engine using the advanced key.
  5. Verify that the security light and keyless warning light operate as shown in the following illustration.
  6. After verifying that the keyless warning light turns off, turn the ignition switch to the LOCK position.
G06149554Courtesy of MAZDA MOTORS CORP.
 Procedure is completed
