Wiper/Washer System Location Index

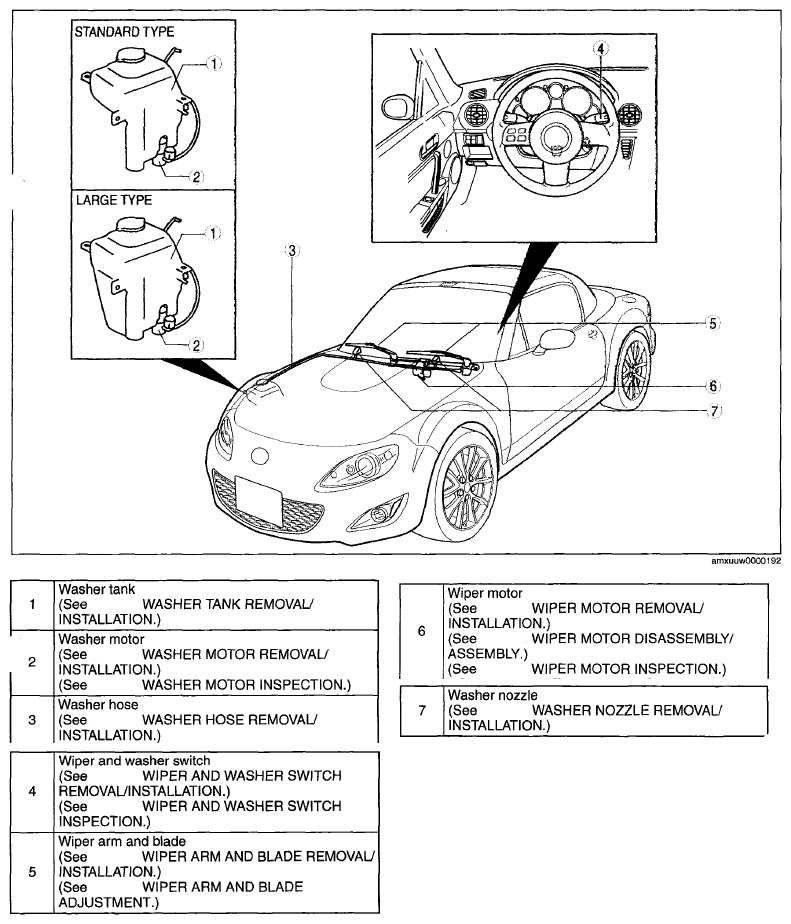

Fig 1: Wiper And Washer System Component Location

G06149078

Courtesy of MAZDA MOTORS CORP.
