Wiper Motor Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  4. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  5. Disconnect the connector.
  6. Remove the bolts.
  7. Remove the nut.
  8. Install in the reverse order of removal.

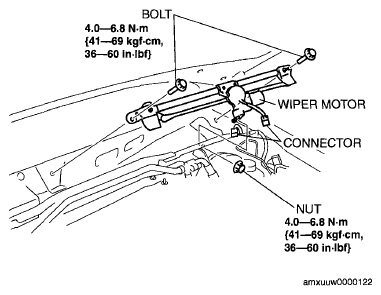

    Fig 1: Wiper Motor Connector And Bolt With Torque Specifications
    G06149084Courtesy of MAZDA MOTORS CORP.
