Ball Joint Assembly Note

  1. Use a clean rag to protect the link, and squeeze using pliers.

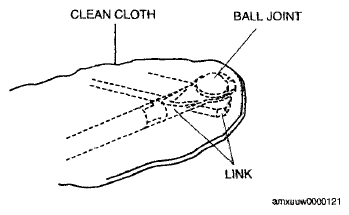

    Fig 1: Ball Joint Assembly
    G06149086Courtesy of MAZDA MOTORS CORP.
