Wiper Arm And Blade Removal/Installation: Notes

  1. Remove in the order indicated in the illustration.

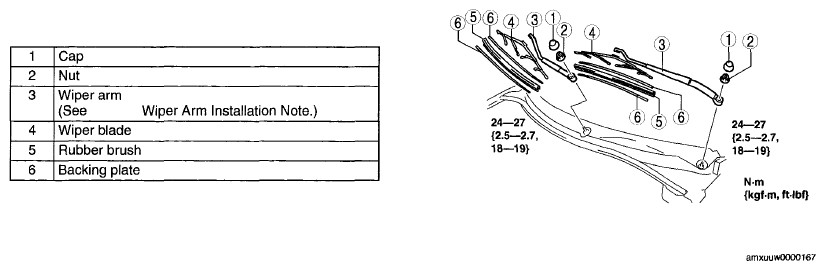

    Fig 1: Wiper Arm, Blade And Rubber Bush With Torque Specifications
    G06149079Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the wiper arm and blade. (See WIPER ARM AND BLADE ADJUSTMENT .)
