Wiper And Washer Switch Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  4. Disconnect the wiper and washer switch connector.
  5. Remove the screws, then remove the wiper and washer switch.
  6. Install in the reverse order of removal.

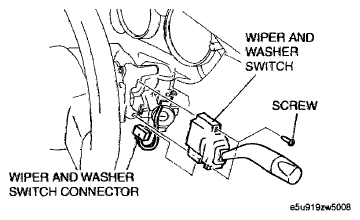

    Fig 1: Wiper, Washer Switch And Screw
    G06149092Courtesy of MAZDA MOTORS CORP.
