Microphone Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .
  3. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION )
  4. Remove the microphone in the direction of the arrow (2) shown in the illustration while pressing the microphone tabs in the direction of the arrow (1).
  5. Install in the reverse order of removal.

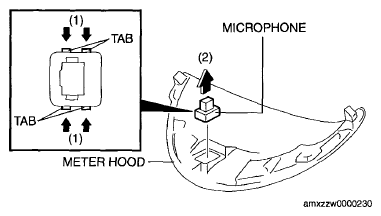

Fig 1: Microphone And Meter Hood
G06149154Courtesy of MAZDA MOTORS CORP.
