Center Speaker Removal/Installation: Notes

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
3. Remove in the order indicated in the illustration.
4. Install in the reverse order of removal.

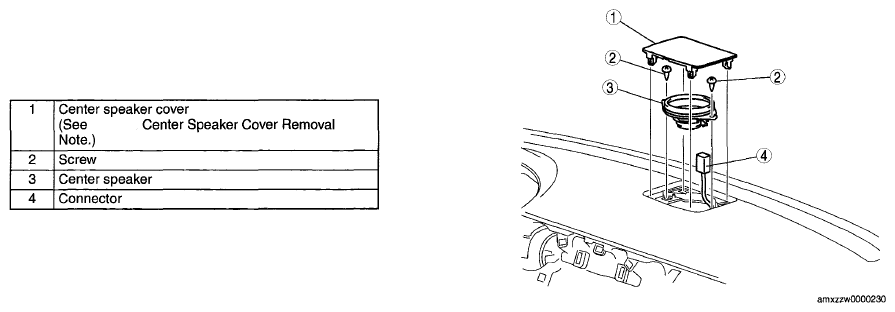

Fig 1: Center Speaker And Screws

Courtesy of MAZDA MOTORS CORP.
