Center Panel Unit Disassembly/Assembly
>>
Screw A Assemble Note
Screw A Assemble Note
Tighten screws A at the position shown in the illustration.

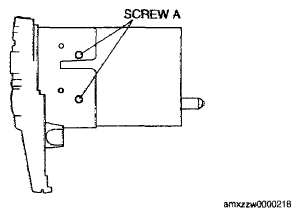

Fig 1: Screws A
Courtesy of MAZDA MOTORS CORP.
