Accessory Socket Removal Note

  1. While pressing a tape-wrapped fastener remover against the cap projection, pull the accessory socket outward.

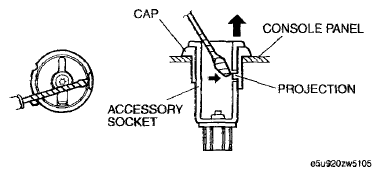

Fig 1: Pressing Tape-Wrapped Fastener Remover Against Cap Projection
G06149157Courtesy of MAZDA MOTORS CORP.
