Accessory Socket Inspection

Connect a tester as shown in the illustration and verify that there is continuity.
- If the continuity cannot be verified, replace the accessory socket.

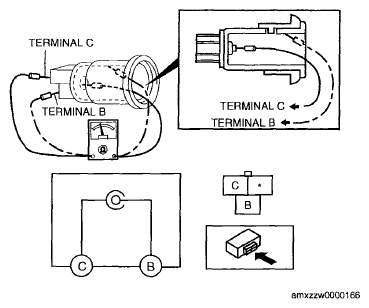

Fig 1: Accessory Socket Circuit

Courtesy of MAZDA MOTORS CORP.
