Map Light Removal Note

  1. Insert a tape-wrapped fastener remover into the gap between the front header trim and the map light.
  2. Press the tab, and remove the map light.

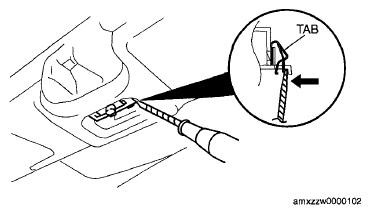

Fig 1: Inserting Tape-Wrapped Fastener Remover Into Gap Between Front Header Trim And Map Light
G06149862Courtesy of MAZDA MOTORS CORP.
