Accessory Socket Removal/Installation: Notes

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION )
  4. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION )
  5. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION )
  6. Remove in the order indicated in the illustration.

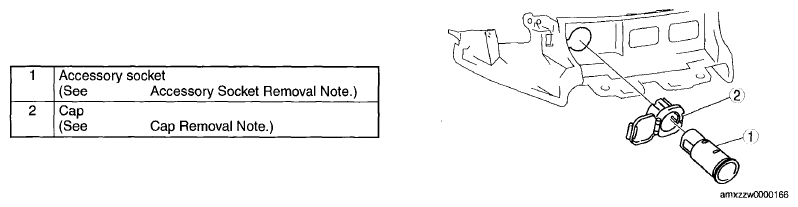

    Fig 1: Accessory Socket And Cap
    G06149156Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
