Selector Cable Installation Note

Install the selector cable and clip to the bracket as shown in the illustration.
NOTE:
- Steps 2 and 3 are for the selector cable replacement only.
Verify that the selector lever is in the P position.

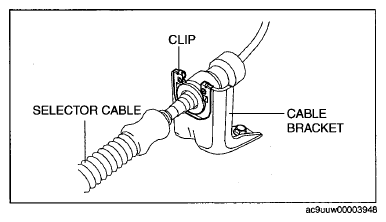

Fig 1: Cable Bracket, Clip And Selector Cable
Courtesy of MAZDA MOTORS CORP.
Lock the lock piece of the selector cable (selector lever side) in the order shown in the illustration.

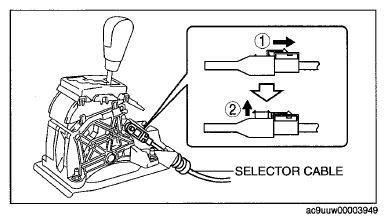

Fig 2: Selector Cable Lock Piece Locking Sequence
Courtesy of MAZDA MOTORS CORP.
Verify that the manual shaft is in the P position.
CAUTION:
- Bending the selector cable in the manner shown in the illustration will damage the cable and it may become loose when shifted. When installing the selector cable, hold it straight.
Fig 3: Selector Cable Bending Position
Courtesy of MAZDA MOTORS CORP.
Install the clip as shown in the illustration.

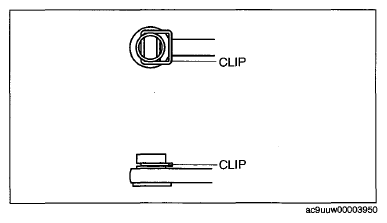

Fig 4: Clip Installing Position
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install the selector lever to the manual shaft lever with the clip side of the selector cable end facing up.
Install the selector lever to the manual shaft lever so that no load acts on the selector cable.
Confirm that the tip of the manual shaft lever projects out of the end of the selector cable.
Securely install the selector cable to the selector cable bracket.

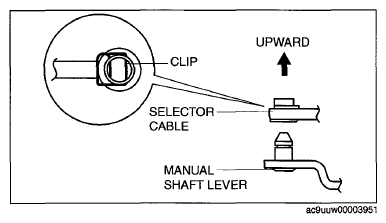

Fig 5: Selector Cable Installing Position
Courtesy of MAZDA MOTORS CORP.
