Selector Cable Adjustment

  1. Remove the center console.
  2. Shift the selector lever to P position.
  3. Unlock the lock piece of the selector cable (selector lever side) in the order shown in the illustration.
  4. Verify that the manual shaft is in P position.

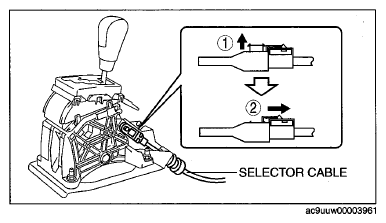

    Fig 1: Selector Cable Lock Piece Unlocking Sequence
    G07823116Courtesy of MAZDA MOTORS CORP.
  5. Lock the lock piece of the selector cable (selector lever side) in the order shown in the illustration.
  6. Install the center console.
  7. Shift the selector lever from P position to M range, and make sure that there are no other components in that area to interfere with the lever.
    Fig 2: Selector Cable Lock Piece Locking Sequence
    G07823101Courtesy of MAZDA MOTORS CORP.
