O-ring Disassembly Note

  1. Remove the O-ring from the oil pump component.

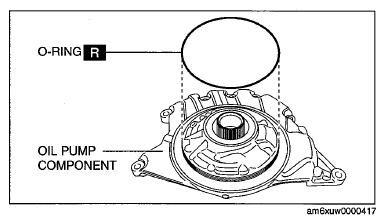

    Fig 1: O-Ring Of Oil Pump Component
    G07823033Courtesy of MAZDA MOTORS CORP.
