O-ring Assembly Note

  1. Apply ATF to a new O-ring.
  2. Install the new O-ring to the oil pump component.

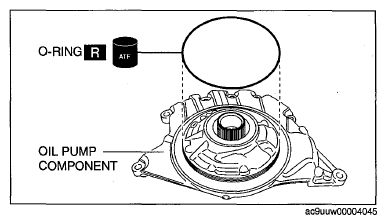

    Fig 1: O-Ring Of Oil Pump Component
    G07823036Courtesy of MAZDA MOTORS CORP.
