Oil Pump Disassembly/Assembly: Notes

NOTE:
  • The following procedure is for replacement of the O-ring and seal rings only. Replace the transaxle if other repairs are necessary.
  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

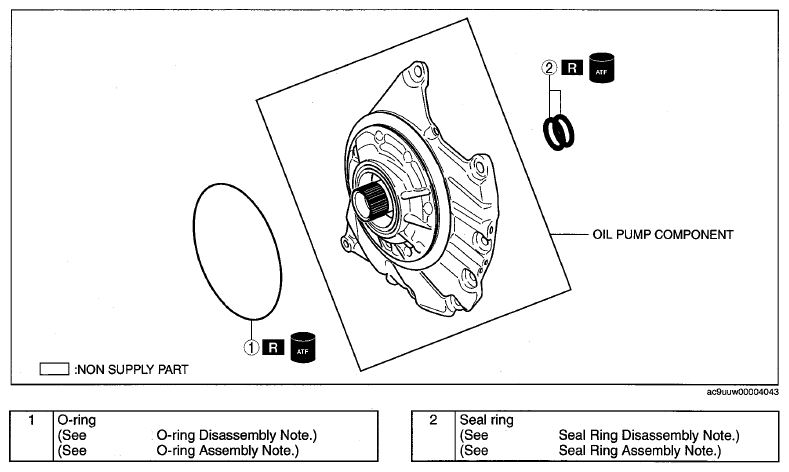

    Fig 1: O-Ring And Seal Ring
    G07823032Courtesy of MAZDA MOTORS CORP.
