M Position Switch Inspection

CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  • Do not damage the terminals.
  1. Disconnect the selector lever component connector.
    1. Disconnect the negative battery cable.
    2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
    3. Disconnect the selector lever component connector.

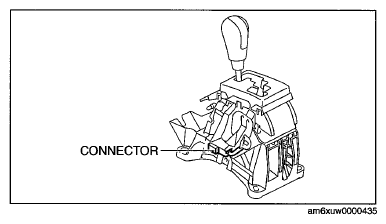

      Fig 1: Selector Lever Component Connector
      G07822675Courtesy of MAZDA MOTORS CORP.
  2. Measure the continuity between selector lever component terminals C and D.
    M POSITION SWITCH SPECIFICATION

    Test condition Continuity
    M position Continuity
    Except M position No continuity

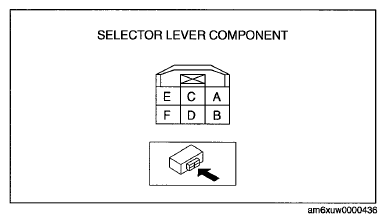

    Fig 2: Selector Lever Component Connector Terminals
    G07822676Courtesy of MAZDA MOTORS CORP.
