Line Pressure Control Solenoid Inspection
>>
Line Pressure Control Solenoid Specification
Line Pressure Control Solenoid Specification
LINE PRESSURE CONTROL SOLENOID SPECIFICATION
ATF temperature (°C {°F})
Resistance (ohm)
20 {68}
5.0-5.6

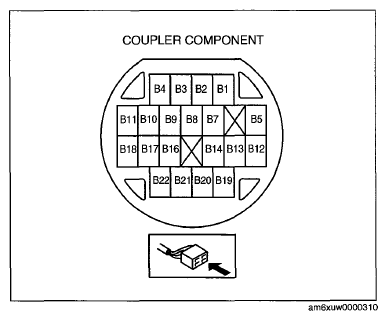

Fig 1: Coupler Component Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
