Transaxle case side

  1. Remove the thrust washer from the front planetary gear component.
    NOTE:
    • In some cases, the thrust washer may be detached with the input shaft attached.

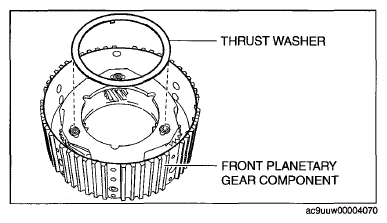

      Fig 1: Thrust Washer And Front Planetary Gear Component (Transaxle Case Side)
      G07823080Courtesy of MAZDA MOTORS CORP.
