Front Planetary Gear Component And Input Shaft Disassembly/Assembly: Notes

NOTE:
  • The following procedure is for replacement of the seal rings only. Replace the transaxle if other repairs are necessary.
  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

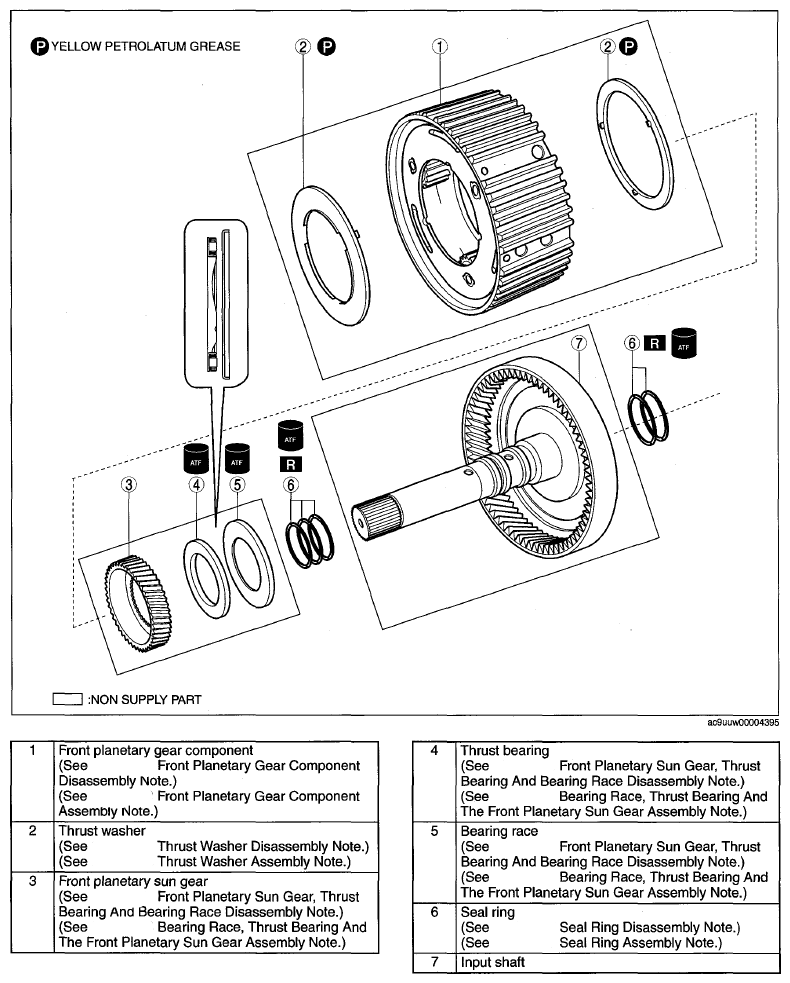

    Fig 1: Exploded View Of Front Planetary Gear Component And Input Shaft
    G07823077Courtesy of MAZDA MOTORS CORP.
