Front Planetary Gear Component Disassembly Note

  1. Remove the front planetary gear component from the input shaft.

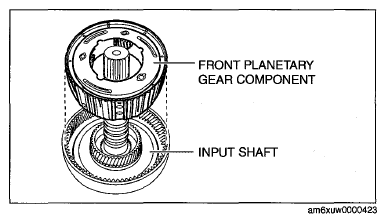

    Fig 1: Front Planetary Gear Component And Input Shaft
    G07823078Courtesy of MAZDA MOTORS CORP.
