Front Planetary Gear Component Assembly Note
Front Planetary Gear Component Assembly Note
Install the front planetary gear component to the input shaft.

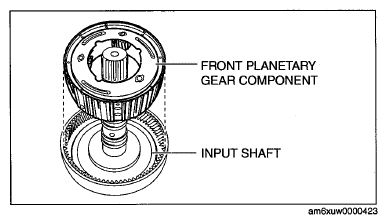

Fig 1: Front Planetary Gear Component And Input Shaft
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
