Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

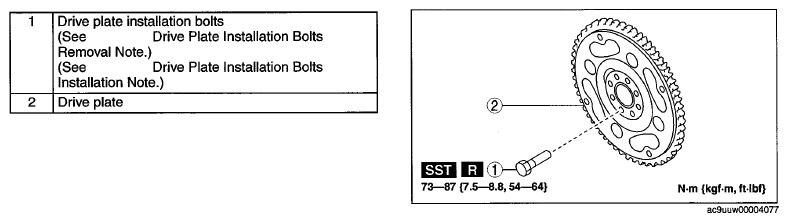

    Fig 1: Drive Plate And Installation Bolt With Torque Specifications
    G07823091Courtesy of MAZDA MOTORS CORP.
