Drive Plate Installation Bolts Removal Note

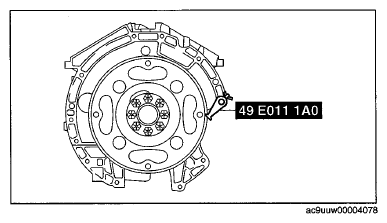

  1. Set the SST  against the drive plate.
    Fig 1: SST On Drive Plate (Loosening Position)
    G07823092Courtesy of MAZDA MOTORS CORP.

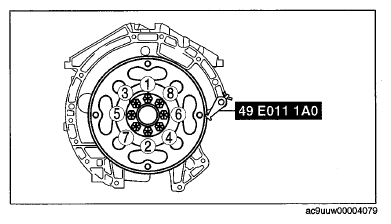

  2. Loosen the drive plate installation bolts uniformly in two or three steps in the order shown in the illustration, then remove the bolts and the drive plate.
    Fig 2: Drive Plate Installation Bolt Loosening Sequence
    G07823093Courtesy of MAZDA MOTORS CORP.
